Description

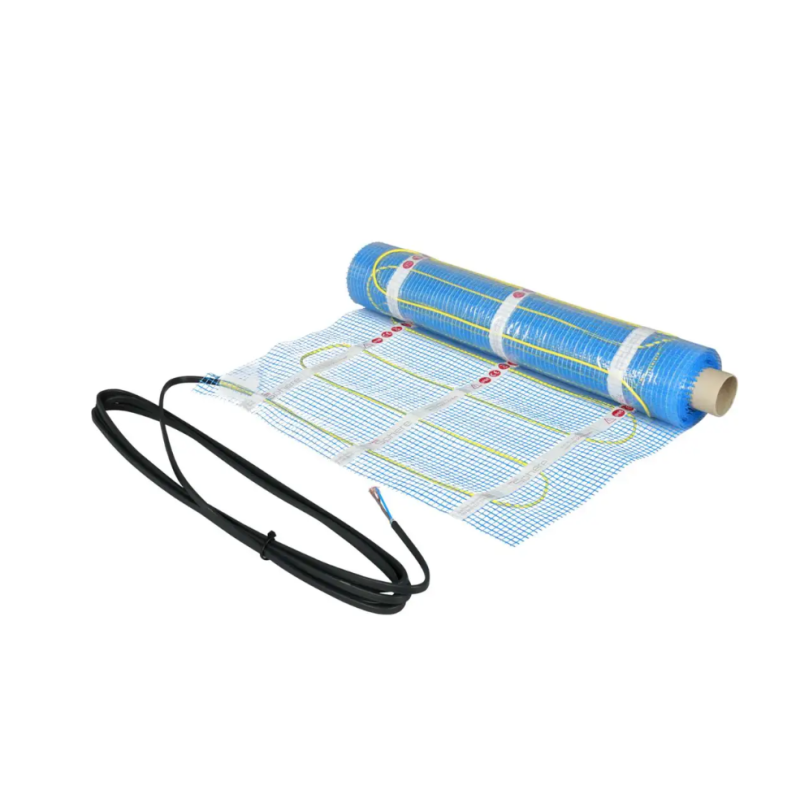

The ThermoSphere 20m² 150W/m² Electric Underfloor Heating Mat provides an efficient and practical electric floor heating solution for tiled and natural stone floors.
Designed to cover approximately 20m², this heating mat delivers 150 watts per square metre, providing a total rated output of 3kW.
The heating cable is pre-spaced across a 500mm wide self-adhesive mesh, helping simplify positioning and installation while ensuring consistent cable spacing across the floor.
ThermoSphere's unique stress-free cable construction is designed to provide long-lasting performance while producing zero electromagnetic field.
The heating cable is installed wire-side-down, allowing the durable mesh to help protect the cable from accidental damage during installation.
A slim 4mm cold tail can be concealed within the tile adhesive layer, helping maintain a clean floor build-up.
With an IPX7 rating, robust construction and a lifetime guarantee when the system is registered, the ThermoSphere 20m² heating mat is an excellent solution for adding comfortable electric underfloor heating beneath tile and stone finishes.
Ideal for bathrooms, kitchens, open-plan living spaces, extensions and other tiled areas where reliable electric floor heating is required.
Brand: ThermoSphere
Product Type: Electric Underfloor Heating Mat
Product Code: TSM-150-2000
Coverage: 20m²
Power Output: 150W/m²
Total Power Rating: 3kW / 3000W
Voltage: 230V
Mat Length: 40m
Mat Width: 500mm
Overall Dimensions: 40m × 500mm
IP Rating: IPX7
Suitable Floor Finishes: Tile & Natural Stone
Mesh Type: Self-Adhesive Mesh
Cable Construction: Stress-Free Heating Cable
Installation Orientation: Wire-Side-Down
Cold Tail Thickness: Approx. 4mm
Weight: Approx. 17.23kg
Guarantee: Lifetime Guarantee When Registered
Packaging Type: Each
Product Range: ThermoSphere
UNSPSC Code: 40101840
