Description

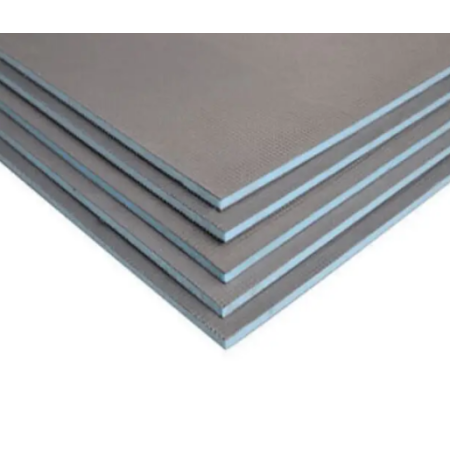

The Thermal Backer Board 1200x600x6mm is designed for use on internal floors and walls, providing effective insulation and waterproofing. With its 6mm thickness and dimensions of 1200mm by 600mm, it supports tile installations with a maximum loading weight of 64 kg/m². The board features a rigid XPS foam core with a density of 32 ± 0.02 kg/m³, ensuring high compressive (320 kPa) and flexural strength (2.46 MPa).
Its thermal conductivity of 0.033 W/(m·K) helps maintain temperature efficiency, while the very low water absorption (less than 1% by 2-day immersion, zero capillary absorption) offers excellent durability against moisture. Additional properties include a nail pull resistance of 270 N, ultimate flatwise tensile strength of 0.463 MPa, and flammability rating of EN13501 Class E. The board also meets antimicrobial standards (ASTM G21-15 0 Grade) for enhanced hygiene.
Dimensions & specifications
Size (mm): 600 x 1200
Thickness (mm): 6
Suitability: Internal Floors and Walls Only
XPS Foam Core Density: 32 ± 0.02 kg/m³
Thermal Conductivity: 0.033 W/(m·K)
Compressive Strength (10% deflection): 320 kPa
Flexural Strength: 2.46 MPa
Water Absorption (2-day immersion): <1%
Water Absorption (capillary): Zero
Maximum Tile Loading Weight: 64 kg/m²
Flammability: EN13501 Class E
Water Vapour Diffusion Resistivity (μ): 110–225 μ
Water Vapour Permeability: 0.028 ng/Pa·m·s
Nail Pull Resistance: 270 N
Ultimate Flatwise Tensile Strength: 0.463 MPa
Antimicrobial Activity Test Result: ASTM G21-15 0 Grade
