Overview

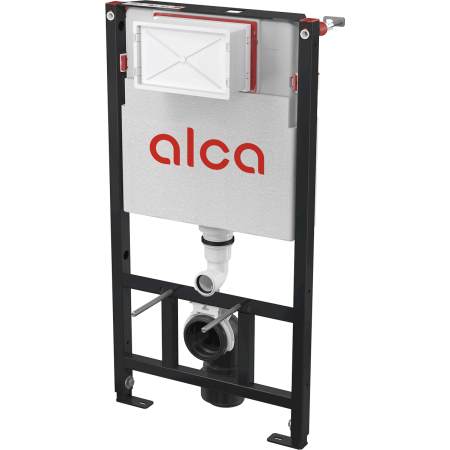

Description
Application:
- For wall-hung WC
- For mounting in front of a support wall or in to a plasterboard construction
- For floor thickness 0–200 mm
- For installation of wall-hung WC pans with a connecting pitch of 180 mm or 230 mm
Technical:
| Water connection from the back or top via mounting holes | G1/2 " |
| Functional range of water pressure | 0,05 – 1,6 MPa |
| Recommended range of water pressure | 0,3 – 0,5 MPa |
| Big flush | 6 – 9 l |
| Small flush | 2,5 – 3,5 l |
| Factory setting of large flush | 6 l |
| Factory setting of small flush | 3 l |
| Hygienic reserve | 3 l |
| Water volume in the cistern | 9 l |
| Load test | 400 kg |
Features:
- Dispenser for WC cistern tablets included
- Adjustable anchor feet and a spring-lock system, with a range of 0–200 mm
- Sliding rail holder for the waste connector can be set to eight positions between 0–93 mm
- Angle valve with the ability to connect to the Mepla piping system
- The frame allows the anchoring to a separate sufficiently strong plasterboard partition, in front of the bearing wall
- The installed module is covered with a plasterboard panel and there is no need for any additional fixing or anchoring elements
- The construction of polystyrene insulation prevents condensation forming on the surface of the tank and dampens the vibrations from the tank into the building structure
- Prepared for connecting a bracket with a DG 1/2” conversion for bidet seats and sprays
- Cistern hinges made of two-component material insulate the transmission of vibrations from buildings
- Possibility of tilting the cistern for easy installation in wooden construction buildings or mobile cells
- Dual flush independently adjustable with hygienic reserve
- Suitable for installation of remote or sensor flushing
- Compatible with all ALCA flush plates
- Maintenance work without using any tools
- Water supply from the rear/top
- The cistern is made of one piece, thus ensuring 100% impermeability
- The service opening cover simplifies assembly and prevents the penetration of moisture and impurities
- Installation depth adjustable from 20–95 mm
- Installation depth 125 mm
- Frame material: powder-coated metal
