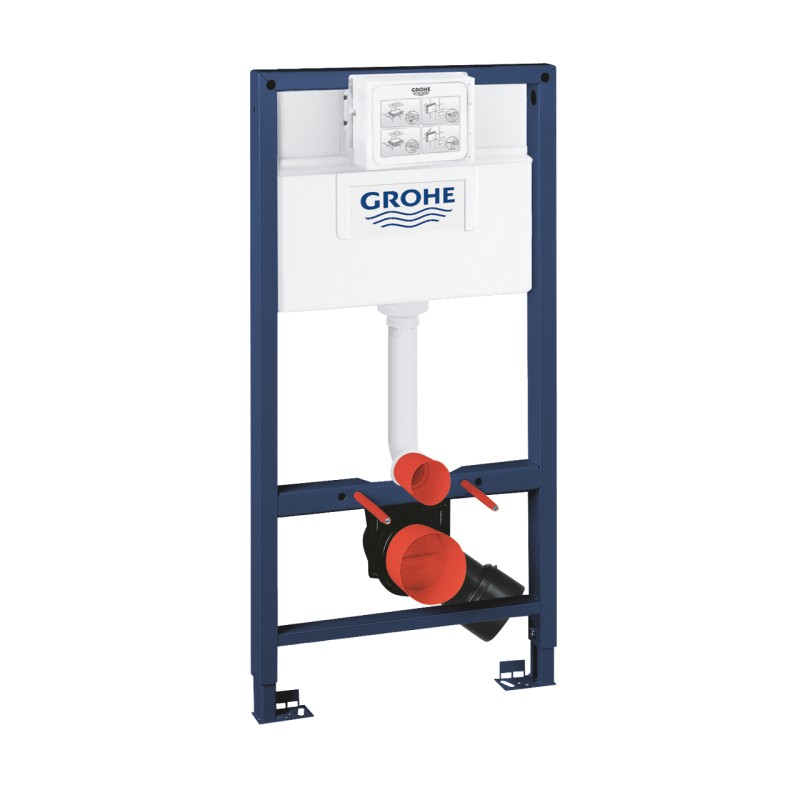

Grohe Rapid SL Element for WC, 1.00 m installation height

Comes with concealed Cistern

with flushing cistern 6 - 3 l

for on-the-wall installations or studded walls

including WRAS approved filling valve

powder coated steel frame, self-supporting

TÜV approved

2 WC fixing bolts

fixing device for ceramic

WC ceramics with small bearing area (< 205 mm) require additional accessory 38 779 000

distance of fixing bolts 180/230 mm

outlet bend Ø 90 mm

depth adjustable

reducer Ø 90/110 mm

inlet and outlet connecting set

flushing cistern 6 - 9 l containing the following features:

water supply from left/right or back

Insulated against condensation

½" water supply connection including integrated angle valve and push fit flexible hose union

for on-the-wall installation please order wall brackets 38 558 00M (sold separately)

for mounting of small flush plates please order revision shaft 40 950 000 (sold separately)

Product Type: Wall Hung Toilet Frame

Height: 985mm

Width: 500mm

Depth: 145mm-165mm

Finish: White/Blue

Shape: Rectangular

Mounting: Wall

Style: Modern
