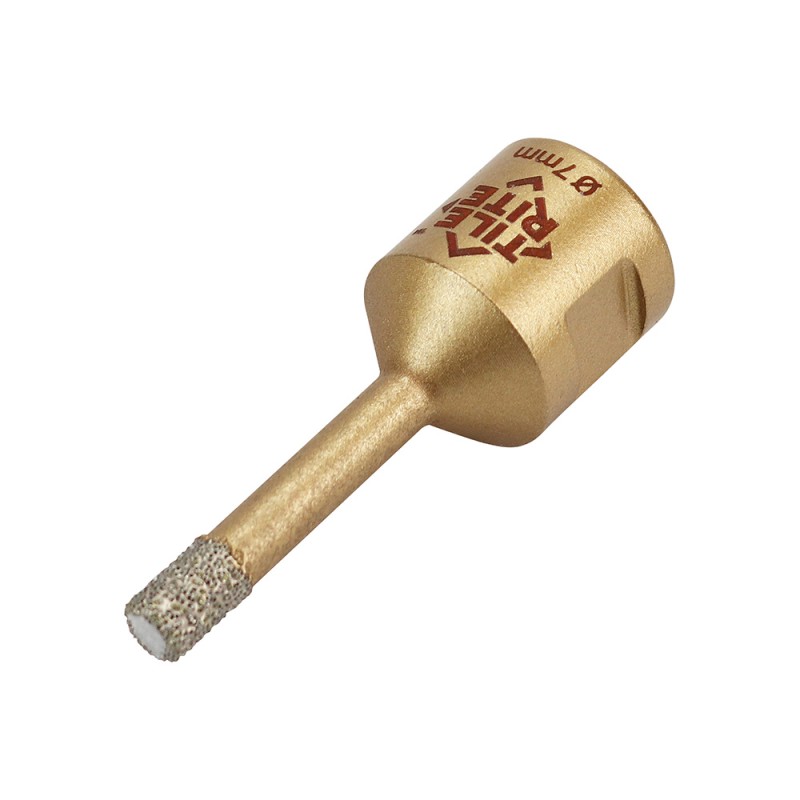

7mm M14 Gold Brazed Diamond Drill Bit

The 7mm M14 Gold Brazed Diamond Drill Bit is designed for high-speed, dry drilling in hard tile and stone surfaces. Manufactured using gold brazed diamond technology, this drill bit delivers aggressive cutting performance, making it ideal for professional installers working with hard porcelain and natural stone.

Fitted with an M14 threaded connection, it mounts directly onto an angle grinder and operates at high speeds of 6000–11000 RPM, allowing rapid penetration through dense materials. While designed for dry use, periodic cooling by dipping the drill bit in water is recommended to prolong tool life and maintain cutting efficiency.

An optional adaptor is available to convert the M14 thread for use with standard 3-jaw drill chucks, providing additional flexibility on site.

KEY FEATURES & BENEFITS

• 7mm diameter – ideal for small fixing holes

• Gold brazed diamond edge – fast, aggressive cutting

• M14 thread – direct fit to angle grinders

• Dry drilling capability – no constant water feed required

• High RPM performance – 6000–11000 RPM

• Adaptor available – allows use with standard drill chucks

TECHNICAL SPECIFICATIONS

• Diameter: 7 mm

• Connection: M14 thread

• Cutting Technology: Gold brazed diamond

• Recommended Tool: Angle grinder

• Max Speed: 6000–11000 RPM

• Cooling: Dry use with periodic water dipping

• Use: Dry drilling only

SUITABLE MATERIALS

• Porcelain tiles

• Marble

• Granite

• Travertine

• Natural stone and dense ceramics
